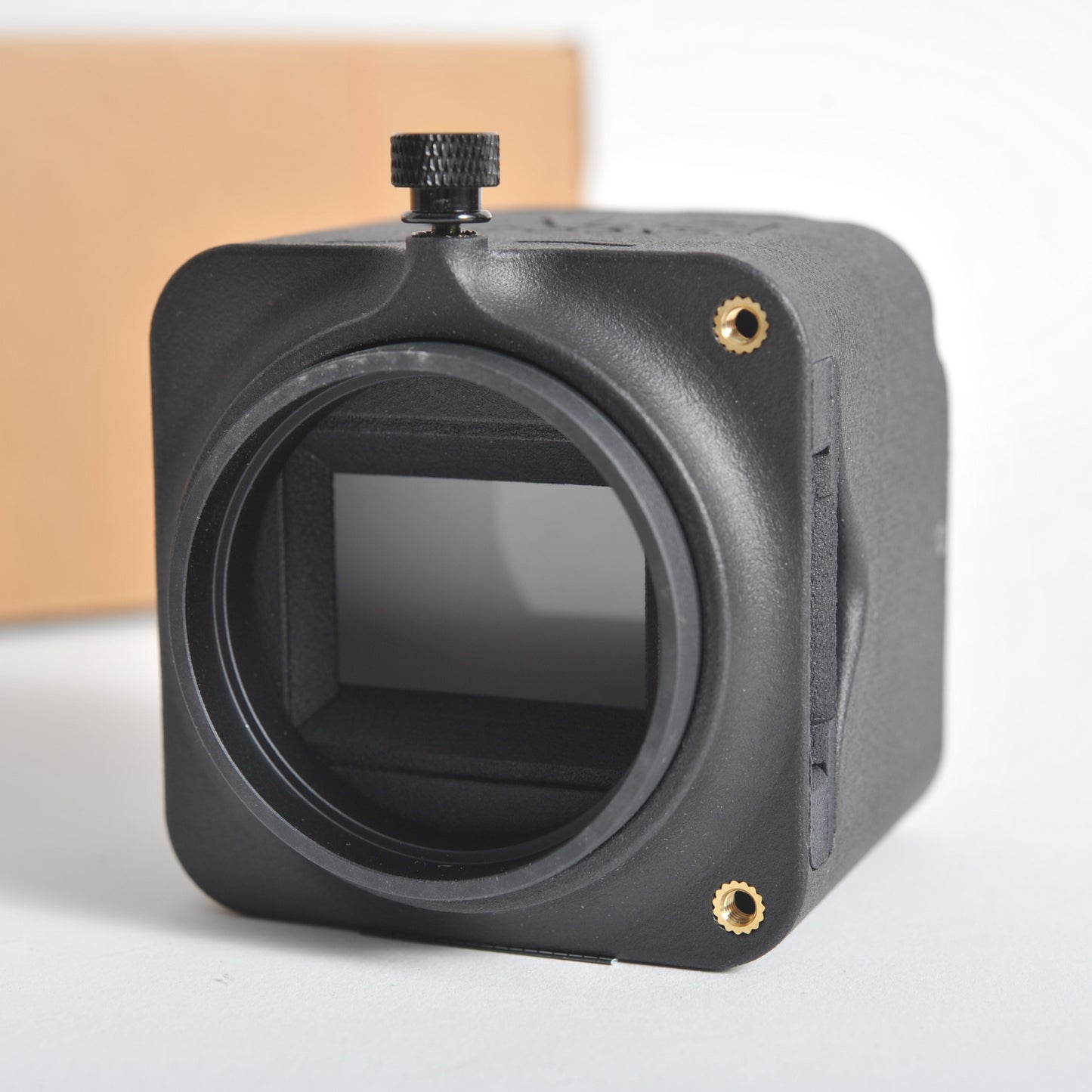

VALOI easy35 film scanning film scanner main kit

The easy35 is a compact home scanning solution. It delivers professional results quickly and reliably. Setting up the easy35 is extremely easy and fast as it does not require leveling or a copy stand. Simply mount as many tubes as you need in front of your macro lens, attach the easy35 and you are ready to go.

Product description here

Please note: The instructions are only available in English.

Product Description:

Use your digital camera and macro lens to achieve amazing film scans at home.

• Plug and Play Scanning at Home
• Scan up to 10x faster than flatbed scanners
• Ultra compact: fits in a small camera bag
• Professional film holder for speed and quality
• Built-in professional light source for convenience and consistent quality
• Replaceable light source ensures long life
• Superior materials for long-lasting products
• Modular holder for formats below 35mm
• No copy stands or tripods needed - saves space and costs.
• Compatible with most macro lenses out of the box, including macro lenses with 39mm, 46mm, 49mm, 52mm, 55mm, 58mm, 62mm and 67mm filter threads.

What's Included:

• VALOI easy35 with built-in light
• VALOI easy35 Standard 35mm Holder
• VALOI easy35 Distance Tubes: 1x 10mm, 1x 20mm, 5x 40mm (total 230mm)
• VALOI Filter Thread Adapters: 39mm, 46mm, 49mm, 52mm, 55mm, 58mm, 67mm (out of the box compatible with lenses with these filter thread adapters, also compatible with 62mm filter threads as this is the native thread size of the easy35)

It does not include the digital camera or macro lens needed to make the final scan.

Charging adapter not included: we recommend using at least a 15W charger to allow for longer scanning sessions.

compatibility

It's suitable for scanning 35mm film straight out of the box, the standard holder can be replaced with a variation that shows the film sprockets, and in future it will accommodate smaller film sizes such as APS, 110 and 126 film.

Most interchangeable lens digital cameras make excellent scanning cameras. To scan 35mm film, you will need a macro lens capable of focusing to 1:1 magnification. Most of the lenses available are compatible.

We do not recommend using lenses with focal lengths greater than the following:

• Full frame: under 55mm, over 105mm
• APS-C: Less than 40mm to 70mm or more
• M4/3: Less than 40mm to 60mm or more

Longer focal length lenses will work too, but we can't guarantee they come with enough tubes to work with, and you may experience vignetting with shorter focal length lenses.

We recommend wearing thin cotton gloves while scanning to avoid damaging your film.

material

The easy35 is a premium product, made from high quality materials because scanning requires precision and inferior materials will not give you a precise device.

The housing is made from Nylon 12, a very robust plastic that is stiff and durable. This material is also ideal for additive manufacturing. It is manufactured using an additive manufacturing technique known as MJF, which allows for the creation of complex shapes. This makes the device stronger, lighter and more compact. Tubes for rotational adjustment

The tube, including the part that facilitates rotation, is made of aluminum and anodized with a super matte finish. This makes the tube slightly heavier, but makes it very rigid. The precise threading not only improves the user experience, but also ensures that the device is perfectly aligned with the sensor. In addition, the super matte finish ensures that no reflections bounce off the film. Inside is a secondary diffuser made from Plexiglas diffuser acrylic, specially designed for LED diffusion.

Light source system

Unlike cheaper solutions, the easy35 features a lighting system based on powerful, high-quality light sources.

• Strong light output, typically 1/40s to 1/200s shutter speed
• Rated CRI 95 for excellent color reproduction
• Bi-color LEDs that can be adjusted to different color temperatures
• Plexiglas © Secondary Diffusers are specially designed for LED diffusion and are guaranteed for 30 years against yellowing
• 2-3 hour battery life
• USB-C Charging
• Stays on and charges during long scanning sessions
• Replaceable light source unit ensures long life
• Internal reflector for uniform light in a small footprint

accessories

Did you know there are accessories for the easy35? The easy35 has the ability to attach the easy35 duster and has an interchangeable holder.

The easy35 comes with interchangeable film holders. Currently available are a standard 35mm holder and . 35mm sprocket holder, 50x50mm mounted slide holder, APS, 110, 126 will be available soon.

To use this product, you will need an interchangeable lens digital camera and a macro lens capable of 1:1 focusing.
